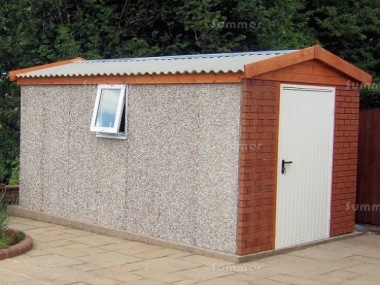

Spar Apex Concrete Shed 674 - Brick Posts, PVCu Window

• Free same day installation
• 10 year structural guarantee
• External pebbledash finish with Canterbury Spar chippings
• Large full height panels with fewer joins and neater internal lines
• Attractive smooth vibrated internal finish
• Strong interlocking rebated concrete panels
• Galvanized bolts
• Apex roof with 12.5 degrees pitch
• Welded steel roof trusses with red oxide finish
• Substantial pressure treated timber roof purlins (lifetime preservative treatment)
• Grey finish cement fibre roof sheets
• Foam filler to eaves
• Decorative brick front piers
• Free non opening double glazed PVCu window 2' wide x 2'6" high (610mm x 750mm)
• Pressure treated timber fascias (lifetime preservative treatment)
• Single hinged door 4'0" wide with white powder coated galvanized steel and vertically ribbed design (8' wide sheds)
• Single hinged door 3'0" wide with white powder coated galvanized steel and vertically ribbed design (all other sizes)
• 4'0" wide door clear opening size 3'9" x 6'0" (1140mm x 1830mm)
• 3'0" wide door clear opening size 2'9" x 6'0" (830mm x 1830mm)
• Door head clearance 6'6" (1985mm)
• Eaves height 6'6" (1980mm)
• External ridge height approximately 7'9" or 2360mm (8' wide sheds)

FREE SAME DAY INSTALLATION - THE BENEFITS: Our free in house installation service is not just convenient, it is also your assurance of a better quality garden shed. This is because any building which includes free installation is invariably better made using quality components. Over time regular feedback from fitters ensures that design faults and weaknesses have been rectified. Same day installation is convenient for you and cost effective because it saves travelling costs. The fitters will deliver your garden shed and then install it, all at the same time. Others send sub-contract fitters separately, often from far away and often a week or two after the delivery. Waiting for the fitter can be very frustrating. Sub-contract fitting is also much more expensive because of the travelling costs. The fitting service does not include base preparation. A flat and level base is required, which should be made using concrete. In many areas we offer a base laying service as an option.

CONCRETE SHEDS AND WORKSHOPS - THE BENEFITS: Many of our best timber sheds and log cabins are solid, well made and likely to last a long time with very little maintenance. However, nothing can match the solidity and durability of a concrete sectional building. If you choose PVCu windows and gables your concrete shed or workshop will be almost completely maintenance free. Sectional concrete sheds and workshops are especially popular as a more secure home for valuable items such as expensive tools or motorbikes.

SPAR FINISH: The heavy duty concrete panels are approximately 65mm thick and steel reinforced. The panels are finished outside with colourful Canterbury Spar chippings and inside with a smooth vibrated finish inside to ensure a neat appearance inside and out. The panels are full height and up to 24" wide so the number of joins is reduced to a minimum. The smooth internal finish is attractive in itself but it is also easy to paint which provides a stunning internal finish.

WELDED STEEL ROOF TRUSSES: All garages feature a substantial roof structure with one piece welded steel trusses which span from side to side. The trusses are bolted to the concrete panels and spaced up to 6' apart. All trusses have a red oxide factory primed finish.

CEMENT FIBRE ROOF SHEETS: These robust cement fibre roof sheets offer excellent noise and thermal insulation. They are rust, rot and corrosion-free, with superb drainage properties. The 5" profile sheets are 20% thicker than many rivals, making it highly impact resistant. A strong ridge cap is also included.

PRESSURE TREATED TIMBER: Pressure treatment is a lifetime preservative treatment. The preservative is forced deep into the timber under pressure in a vacuum and penetrates below the surface. All other treatments apply a coat of stain to the surface of the timber only. With pressure impregnated timber, the chemicals are permanently bonded to the cell structure of the wood at a molecular level. Tanalith E is a widely used water based version so pressure treated wood is often described as tanalised. Pressure treated wood is almost colourless except for a slight green tint caused by the copper content in the preservative. No further preservative treatment is ever needed. However, if you want a coloured finish you can paint over pressure treated or tanalised wood with normal wood preservative in any colour.

INTERNAL SIZES AND BASE SIZES: Concrete sheds and workshops require a substantial concrete base which should be slightly larger than the shed. The ideal size is 3" or 75mm bigger than the shed on all sides. To calculate the correct base size any concrete shed or workshop just add 6" or 150mm to the external width and 6" or 150mm to the external length. Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed near the prices at the top of the page. The internal sizes are approximately 5" or 125mm smaller than the external sizes. All sizes are approximate.

SIZES - LENGTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the width and the second dimension is the length. The width refers to the angled gable walls at the front and rear. The length refers to the side walls. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. All sizes are approximate.

• Brick front piers in a choice of brick colours
• Wider 4' personnel door in place of standard 3' wide door (Supplied as standard on 8' wide sheds)
• Windows can be positioned to either side
• Additional PVCu windows
• Available with no windows for improved security at no additional cost
• Internal mortar fillet to prevent water ingress under the walls
• Coloured finish cement fibre roof sheets instead of the standard grey finish
• Tile-effect steel roof sheets with no drip anti-condensation coating inside and plastisol coated finish outside
• Insulated tile-effect steel roof sheets with plastisol coated finish outside
• Granular steel roof tiles in a choice of colours
• Choice of black, brown or white PVCu guttering and downpipe fitted to both sides
• Internal partitions
• Portable indoor gas heaters - no need for an electricity supply or trailing leads

INTERNAL MORTAR FILLET: A mortar fillet can be laid on the inside of your building between the concrete panels and the base. This will prevent water ingress under the walls.

TILE-EFFECT ANTI-CONDENSATION ROOF SHEETS: These heavy duty galvanized steel roof sheets have a no drip anti-condensation layer on the underside. The outside has an attractive tile-effect appearance with a plastisol coated finish for added longevity. The absorbent fibrous mat applied to the underside of the steel roof sheets absorbs condensation. The fibrous mat absorbs water which then evaporates when the temperature rises. It is a permanent felt based moisture barrier which is applied to the metal sheet during manufacture. The anti-condensation coating is a light grey colour with an attractive fabric finish.

TILE-EFFECT INSULATED ROOF SHEETS: These heavy duty galvanized steel roof sheets have a 40mm thick insulating lining board on the underside, giving a smooth internal finish. The outside has an attractive tile-effect appearance with a plastisol coated finish for added longevity. Insulation gives a more comfortable working environment year round.

GRANULAR STEEL ROOF TILES: These lightweight granular steel roof tiles include a 40 year manufacturer's guarantee. The tiles have been tried and tested in every climate throughout the world from hurricanes and hailstones to heatwaves. Uses include homes, flats, schools, offices and all types of buildings. The tiles are pressed from galvanized steel with further protective layers of weather resistant acrylic and a coverage of natural stone chips. An environmentally friendly fungicide is contained within the coating to ensure no moss or lichen growth and resistance to UV radiation ensures reduced colour fading. The appearance of colours and shades may vary between different screens or devices.

INTERNAL PARTITIONS: If required partitions are available so you can create a separate area within the building. This area could be accessed by fitting a personnel door in an external wall or in the partition itself. If your order includes internal partitions we will contact you to discuss your requirements.

POSITION OF WINDOWS AND DOORS: If you like you can order your concrete shed without specifying the door and window positions - if so, we will contact you to discuss your requirements. If you prefer you can select one of our standard designs, which are displayed under the Design Options heading.
