Spar Apex Concrete Shed 782 - PVCu Window and Fascias
1
2
3
4
Play Video

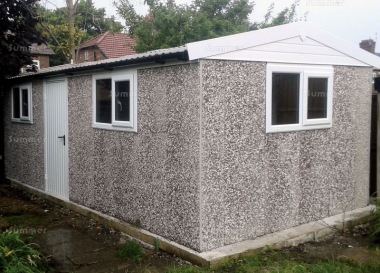

Pictures 1 and 2 show a 10'3"x20'1" shed with two optional additional 4' windows. All windows have been upgraded to opening windows. Picture 3 shows a close up view of the Canterbury Spar finish. Picture 4 shows an internal view.

Summary:

These apex roof concrete sheds and workshops range in size from approximately 6'x10' to 16'x20' and include free installation. The attractive and durable pebbledash finish features colourful Canterbury Spar chippings. Standard features include PVCu fascias and a 3' wide white powder coated single hinged door in the side wall. The robust cement fibre roof sheets offer excellent drainage properties and are available in a choice of colours. The steel roof structure features welded steel trusses with a red oxide finish. An internal mortar fillet is fitted to prevent water ingress under the walls. PVCu guttering in a choice of colours and a 4' wide double glazed PVCu windows are also included. Roof upgrades include decorative granular steel tiles and insulated tile-effect steel sheets.

Back to the Top
  • Free same day installation
  • Free mortar fillet to the internal walls
  • 10 year structural guarantee
  • External pebbledash finish with Canterbury Spar chippings
  • Large full height panels with fewer joins and neater internal lines
  • Attractive smooth vibrated internal finish
  • Strong interlocking rebated concrete panels
  • Galvanized bolts
  • Apex roof with 12.5 degrees pitch
  • Welded steel roof trusses with red oxide finish
  • Substantial pressure treated timber roof purlins (lifetime preservative treatment)
  • Cement fibre roof sheets
  • Foam filler to eaves
  • Free non opening 2 pane double glazed PVCu window 4' wide x 2'6" high (1220mm x 750mm)
  • Square line PVCu guttering with downpipes
  • Low maintenance PVCu gables and fascias
  • Vertically ribbed white powder coated finish galvanized steel personnel door 3' wide (915mm)
  • Door clear opening size 2'9" x 6'0" (830mm x 1830mm)
  • Door head clearance 6'6" (1985mm)
  • Eaves height 6'6" (1980mm)
  • External ridge height approximately 7'9" or 2360mm (8' deep sheds)
  • External ridge height approximately 7'10" or 2390mm (9' deep sheds)
  • External ridge height approximately 8'0" or 2440mm (10' deep sheds)
  • External ridge height approximately 8'2" or 2500mm (12' deep sheds)
  • External ridge height approximately 8'5" or 2560mm (14' deep sheds)
  • External ridge height approximately 8'0" or 2450mm (16' deep sheds)

FREE SAME DAY INSTALLATION - THE BENEFITS: Our free in house installation service is not just convenient, it is also your assurance of a better quality garden shed. This is because any building which includes free installation is invariably better made using quality components. Over time regular feedback from fitters ensures that design faults and weaknesses have been rectified. Same day installation is convenient for you and cost effective because it saves travelling costs. The fitters will deliver your garden shed and then install it, all at the same time. Others send sub-contract fitters separately, often from far away and often a week or two after the delivery. Waiting for the fitter can be very frustrating. Sub-contract fitting is also much more expensive because of the travelling costs. The fitting service does not include base preparation. A flat and level base is required, which should be made using concrete. In many areas we offer a base laying service as an option.

CONCRETE SHEDS AND WORKSHOPS - THE BENEFITS: Many of our best timber sheds and log cabins are solid, well made and likely to last a long time with very little maintenance. However, nothing can match the solidity and durability of a concrete sectional building. If you choose PVCu windows and gables your concrete shed or workshop will be almost completely maintenance free. Sectional concrete sheds and workshops are especially popular as a more secure home for valuable items such as expensive tools or motorbikes.

SPAR FINISH: The heavy duty concrete panels are approximately 65mm thick and steel reinforced. The panels are finished outside with colourful Canterbury Spar chippings and inside with a smooth vibrated finish inside to ensure a neat appearance inside and out. The panels are full height and up to 24" wide so the number of joins is reduced to a minimum. The smooth internal finish is attractive in itself but it is also easy to paint which provides a stunning internal finish.

WELDED STEEL ROOF TRUSSES: All garages feature a substantial roof structure with one piece welded steel trusses which span from side to side. The trusses are bolted to the concrete panels and spaced up to 6' apart. All trusses have a red oxide factory primed finish.

CEMENT FIBRE ROOF SHEETS: These robust cement fibre roof sheets offer excellent noise and thermal insulation. They are rust, rot and corrosion-free, with superb drainage properties. The 5" profile sheets are 20% thicker than many rivals, making it highly impact resistant. A strong ridge cap is also included.

PRESSURE TREATED TIMBER: Pressure treatment is a lifetime preservative treatment. The preservative is forced deep into the timber under pressure in a vacuum and penetrates below the surface. All other treatments apply a coat of stain to the surface of the timber only. With pressure impregnated timber, the chemicals are permanently bonded to the cell structure of the wood at a molecular level. Tanalith E is a widely used water based version so pressure treated wood is often described as tanalised. Pressure treated wood is almost colourless except for a slight green tint caused by the copper content in the preservative. No further preservative treatment is ever needed. However, if you want a coloured finish you can paint over pressure treated or tanalised wood with normal wood preservative in any colour.

INTERNAL MORTAR FILLET: The price includes laying a mortar fillet on the inside of your building between the concrete panels and the base to prevent water ingress under the walls. This important finishing touch is not always included with other concrete buildings.

INTERNAL SIZES AND BASE SIZES: Concrete sheds and workshops require a substantial concrete base which should be slightly larger than the shed. The ideal size is 3" or 75mm bigger than the shed on all sides. To calculate the correct base size any concrete shed or workshop just add 6" or 150mm to the external width and 6" or 150mm to the external length. Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed near the prices at the top of the page. The internal sizes are approximately 5" or 125mm smaller than the external sizes. All sizes are approximate.

SIZES - DEPTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the angled gable walls to each side. The width refers to the front and rear walls including the door wall. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger. All sizes are approximate.
